Asphalt
Professional equipment for testing asphalt and bitumen in accordance with EN, ASTM and other international standards. Designed for laboratories, asphalt plants and quality control environments.
Typical Applications
- Quality control in asphalt production
- Verification of asphalt mix performance
- Bitumen characterization and classification
- Laboratory testing for compliance and certification
- R&D for pavement materials and mix design
Bitumen
Equipment for characterizing bitumen binders — penetration, softening point, ductility and viscosity measurements.
Products:
Automatic Ring and Ball
Using the Ring-and-Ball method, the softening point of bitumen and bituminous binders is determined within the temperature range of 28 °C to 150 °C.
SOFTMATIC – B070M Automatic Ring-and-Ball Apparatus for Bitumen
Norwegian Standards:
NS-EN 1427 (2007): Bitumen and bituminous binders – Determination of softening point – Ring-and-Ball method
NS-EN 12594 (2015): Bitumen and bituminous binders – Preparation of samples
NS-EN 58 (2012): Bitumen and bituminous binders – Sampling of binders
Download brochure
Ductilometer
A ductilometer is used to determine the elastic recovery of modified bitumen.
The method is used especially for evaluating bitumen modified with thermoplastic elastomers.
Norwegian Standards:
NS-EN 13398 (2010): Bitumen and bituminous binders – Determination of elastic recovery of modified bitumen
NS-EN 12594 (2015): Bitumen and bituminous binders – Preparation of samples
Download brochure
Asphalt Combustion Furnace
Combustion furnace with integrated scale.
Determination of binder content without the use of solvents.
Download brochure
Penetrometer
A penetrometer is used to determine the hardness of bitumen and bituminous binders by measuring the penetration depth of a needle into the sample.
Download brochure
Bituminous Masses (Asphalt Mixtures)
Bituminous mixtures, commonly referred to as asphalt, are a blend of mineral Bituminous binders are a collective term for the organic material that forms the adhesive component in asphalt.
They are also used for membranes on, for example, bridges, as well as for bonding between different layers.
Bitumen is important for preventing deformation and water penetration in asphalt, while still maintaining its flexibility.
We supply testing equipment used for bitumen testing, machines for studying the rheological properties of bitumen, as well as the properties of bituminous emulsions.
Products:
Asphalt Splitter
The asphalt splitter is used to break and crumble asphalt samples within minutes, producing high-quality results.
A coarse asphalt sample of approximately 1 kg is poured into the stainless steel bowl, which is equipped with three rotating paddles at the bottom.
The lid is closed, the machine starts, and the three paddles break and crumble the sample.
The bowl is then tilted forward, and the processed sample is poured out onto the supplied pan.
Download brochure
Gyratory Compactor
A gyratory compactor is used to compact cylindrical asphalt specimens.
The method can be used for:
- Determining the air void content in an asphalt mixture after a specified number of gyrations.
- Producing a curve showing density or air voids versus number of gyrations.
- Preparing specimens with a defined height to achieve a sample with a specific density for further testing.
The gyratory compactor is used to simulate and reproduce the actual compaction conditions during asphalt paving, thereby determining the compaction characteristics of the asphalt.
Norwegian Standard:
NS-EN 12697-31 (2007): Bituminous mixtures – Test methods for hot-mix asphalt
– Part 31: Preparation of specimens using gyratory compaction equipment
Download brochure
Marshall Hammer
The Marshall hammer is used to compact Marshall specimens by impact compaction.
The hammer is delivered complete, except for molds, which must be ordered separately.
Norwegian Standard:
NS-EN 12697-10: Bituminous mixtures – Test methods
Part 10 – Compactability
Download brochure
Marshall Compression Machine
A Marshall press is used to determine the indirect tensile strength and the load distribution coefficient of bituminous mixtures.
Norwegian Standards:
NS-EN 12697-23 (2003): Bituminous mixtures – Test methods for hot-mix asphalt
– Part 23: Determination of the indirect tensile strength of bituminous specimens
NS-EN 12697-35 (2007): Bituminous mixtures – Test methods for hot-mix asphalt
– Part 35: Laboratory mixing
Download brochure
Water Bath for Marshall Specimens
Used to keep Marshall specimens in water at a constant temperature of
60 °C ± 1 °C, and asphalt samples at 37.8 °C ± 1 °C.
These baths are also ideal for general laboratory use.
B051 Matest Water Bath 46 L, including control panel C306-03
Delivered without heating element, which must be ordered separately.
B051-2 Digital Thermostat-Controlled Heating Element for water bath B051
230 Volt, 1-phase, 1500 W
Standards:
EN 12697-34 | ASTM D6927, D1559, D5581 | AASHTO T245
Download brochure
Pavemix Mixer
Asphalt laboratory mixer, 32 liters, with removable paddles for easy cleaning of the mixing drum.
Specifically designed to produce homogeneous mixtures of bitumen at a strictly controlled temperature.
Norwegian Standard:
NS-EN 12697-35 – Bituminous mixtures – Test methods
Part 35 – Laboratory mixing
Download brochure
Rotary Evaporator
A rotary evaporator is used to recover bitumen from an asphalt mixture, either from a plant mix sample or a pavement sample.
The method is intended for the recovery of bitumen and can also be used for polymer-modified bitumen.
The method may also be adapted for the recovery of soft bitumen.
Norwegian Standard:
NS-EN 12697-3 – Bituminous mixtures – Test methods
Part 3: Recovery of bitumen: Rotary evaporator
Download brochure
Pavements & Base Layers
Equipment for evaluating pavement and base layer material performance, density, compaction and friction properties.
Below is the full selection of equipment for testing pavement and base layer materials. The range includes tools for density measurement, friction evaluation, compaction, layer thickness and surface texture.
Asphalt Saw
KR provides high-quality saws for a wide range of asphalt and concrete applications:
We particularly recommend the following two models:
- Jumbo – A straightforward, single-blade saw that delivers reliable performance.
- KR – A professional-grade saw available with one or two blades, ideal for high-volume cutting and for users who prioritize maximum operator safety.

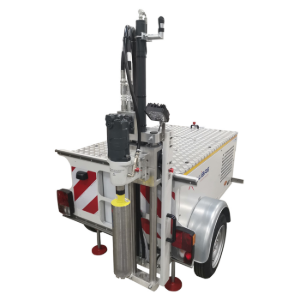

Core Drilling Rigs
Mobile drilling rigs for extracting asphalt and base layer cores on site. Suitable for sampling, thickness control and structural evaluation.
Download brochure
PSV Friction Tester
Polished Stone Value (PSV) tester for determining the friction and skid-resistance properties of aggregates used in pavement surfaces.
Wheel Track
The Wheel Track is used in the laboratory to evaluate the deformation resistance against permanent deformation of a bituminous specimen.
Download brochure
UTM VersaPro
Universal Testing Machine designed for advanced mechanical testing of asphalt materials, including fatigue, stiffness and tensile strength.
PUMA
Innovative test equipment which fills the gap between complex laboratory tests and CBR.
Download brochure
Roller Compactor
The Roller Compactor is used to produce specimens for testing bituminous mixtures
Download brochure
Sand Patch Equipment
Surface characteristics for roads and airfields
Measurement of pavement surface macro-texture depth using the volumetric technique.
Download brochure
Prall Tester (Prall Abrasion Tester)
The Prall tester is used for determining studded-tyre wear on asphalt.
- Double test chambers
- High repetebility
- User-friendly control system
- Flexible test parameters
- High quality – reliable construction
NEN 12697-16 Bituminous mixtures – Test methods for hot-mix asphalt.
Part 1 – Studded tyre wear.
Download brochure
Asphalt Density Meter
A density meter that provides a non-nuclear alternative for determining accurate percentage compaction on asphalt surfaces where, in some cases, nuclear technology cannot be used.
Download brochure
Contact
For more information about asphalt testing equipment, please contact our Test Equipment team at Kamet-Röbäcks AS.
