Curing Tanks
Used for curing concrete test specimens under controlled conditions and at a constant water temperature.
Concrete curing tanks are supplied in several versions: plastic, galvanized steel, and stainless steel.
The tanks can be supplied with either an analog or digitally controlled heating element.
Available sizes range from 200 to 1000 liters.
Finished cast cubes, cylinders, or prisms/beams are placed in the curing tank. The water must be maintained at a constant temperature of 20 °C.
Norwegian Standard:
NS-EN 12390-2 Testing hardened concrete – Part 2: Making and curing specimens for strength tests
Different models:
Curing tank in galvanized steel sheet, 1000 L
Internal dimensions: 1500 × 750 × 750 mm
Including control panel and digitally controlled heating element, 2000 W
Curing tank in plastic, 200 L
Internal dimensions: 1070 × 450 × H410 mm
Digitally electronically controlled heating element
Including lid, grate, and drain valve
External dimensions: 1200 × 660 × H540 mm

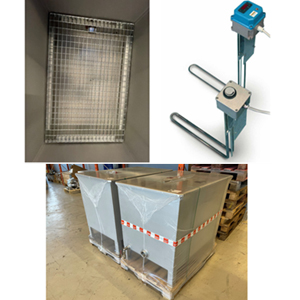

Curing tank in stainless steel sheet, 475 L
External dimensions: 1110 x 740 x 950 mm
Including control panel and digitally controlled heating element, 2000 W
